Merkle Sum Tree: A Vulnerability Analysis and Mitigation Strategies

Apr 20, 2024

Introduction

Since the introduction of Bitcoin, people have been interested in investing and trading in cryptocurrencies. As a result of that, countless exchanges arose in the 2010s that can facilitate this transaction. But unlike stock exchanges, there were no regulatory bodies like SEC, SEBI or ESMA. Hence the only option you have in obtaining cryptocurrencies is to trust the exchange and hope they have your reserves.

This was quite obviously the opposite dynamic of what Bitcoin promotes, which was a trustless world where code is law and everything is mathematically guaranteed. This led to the creation of Proof of Solvency solutions, a cryptographic way to prove that an exchange holds more assets than the liabilities due to its users. This would ensure that in case of a bank run, the exchange would be successful in satisfying the withdrawals of each and every user.

Proof of Solvency

Proof of Solvency can be achieved by having a commitment of assets and liabilities on chain. Proving that the exchange holds some assets is quite easy, you just need a signature to prove that an exchange does indeed own a bunch of accounts who’s balance can easily be verified on the blockchain. But proving how much liability the exchange has is a bit tricky. This is because the exchange receives real world assets from the user and holds their cryptocurrency on their behalf. This is why these exchanges are also called custodians. Decentralized exchanges like Uniswap don’t face this problem as the users have control over their assets and the exchange happens through smart contracts on chain.

For example, Summa is a zero knowledge proof of solvency protocol developed by Privacy and Scaling Ethereum. They let custodians generate proof of solvency while keeping their sensitive data private. According to Summa's requirements, the equation must be satisfied between assets and liabilities for each cryptocurrency to generate a valid Proof of Solvency.

Merkle Sum Tree

To prove a commitment of liabilities, the Merkle Sum Tree (also called a Maxwell Tree) was introduced. A Merkle Sum Tree is similar to a Merkle Tree but in addition to the hash of the contents, it also has a balance value for each leaf node. Each leaf node contains the hash of a username and a balance of that user. The balance of each middle node is the sum of the balances of its child nodes and hence the root of this Merkle Sum Tree has the cumulative balance of all its leaf nodes.

The leaf node includes information like the balance, username or Id and a nonce.

The hash of a leaf node is hence:h = H(v || id || nonce)and the hash of a middle node upto the root is:
h = (vr + vl || hr || hl)
*where v represents the balance
r suffix represents the right child
l suffix represents the left child

Vulnerability Analysis

This original form of Merkle Sum Tree is prone to an attack where the custodian can lie and report less liabilities than they actually hold. The lowest bound of this attack is where the custodian shows their total liabilities is equal to the maximum of all the liabilities of the users.

The attack can take place when the custodian builds a Merkle Tree where Balance of a middle node is v where:
max(vr, vl) <= v <= vr + vl

This attack works under the assumption that the user information is private to each user and only the custodian has information about all the users.

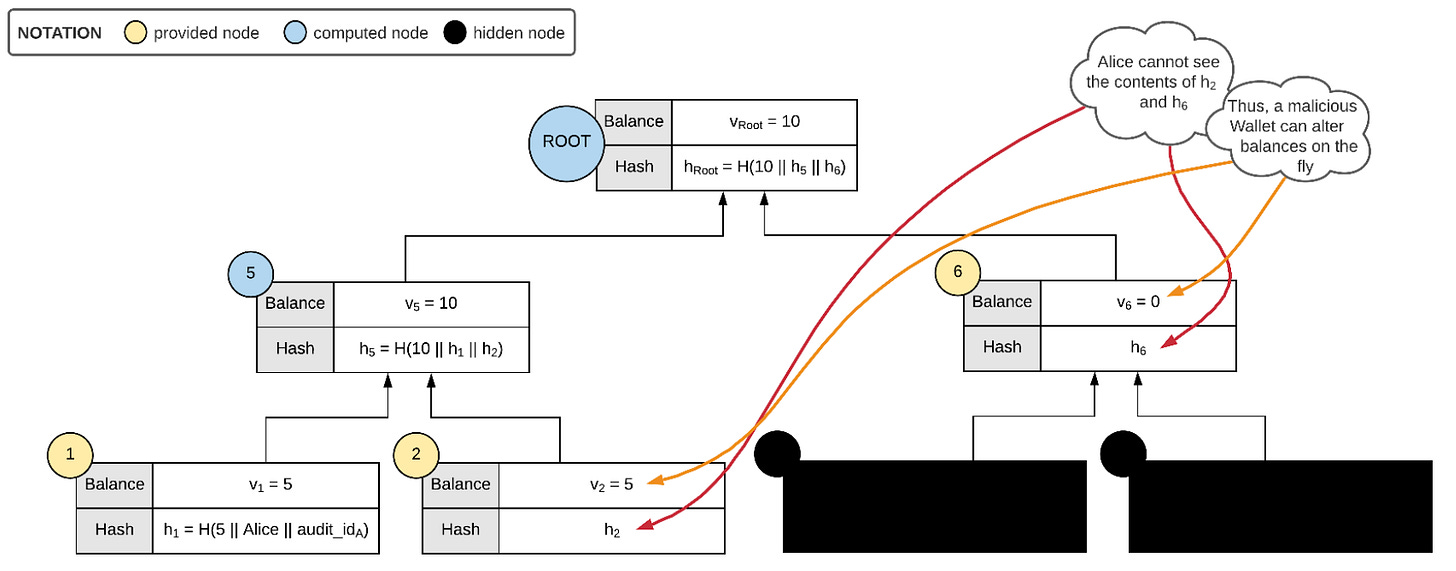

Suppose MST was constructed with Middle node having a balance = Max(vr, vl) In this scenario when I request a Merkle proof from the custodian, I receive the balance and Hash of my immediate leaf node along with balances and hashes of sibling middle nodes required to construct the tree.

At each step, instead of providing me the actual balance in the node, the custodian just provide me the value:
v = max(vr, vl) - v’
*where v’ is the balance of my node

This way at each step the total balance will sum up to max(vr, vl) and the root I obtain will be equal to the root committed by the custodian. This would leave me to believe that I have successfully verified my proof of inclusion without realising that I did NOT construct a Merkle Sum Tree but just picked out the max balance of all leaf nodes.

We are under the assumption that the balance information of a leaf node is private to each user and the custodian has all information about the tree.

In practice the custodian can put any value v:
max(vr, vl) <= v <= vr +vl
*Assumption: the custodian has no intention to overstate its liabilities

If a user has multiple addresses, then they can construct multiple trees and realize discrepancies wherever their nodes intersect. Also if a user with the maximum balance of all users verifies their proof of inclusion, they’ll realize that their liability is equal to the total liabilities committed.

A custodian has access to all their user data, both in the Merkle Tree and Auxiliary data they can collect from cookies. They can use this information to pinpoint exactly which addresses a user holds and construct a tree with values to minimize the chance of realising an attack.

Mitigation

This vulnerability was originally discovered in this paper which also provided mitigation solution. Include balances of both child nodes in the hash of middle node Provide zk proof of hashing along with merkle proof

Instead of hashing the sum of balances of child nodes, a middle node can instead use the hash:h = H(vr || vl || hr || hl)
This way the custodian cannot lie about the balances of other nodes not visible to the user as any attempt at tampering the merkle tree will change the hash and not allow the users to verify proof of inclusion.

This paper talks about another approach (taken by summa) in section 3.2 which is to provide along with the Merkle proof, a ZK proof:π = ZK.Prove{(x) : h = H(v||x)}

A user after verifying this zk proof will be convinced that the balance of each leaf node is aggregated correctly. This is because if the custodian tries lie about the liabilities commitment, they also would require to submit a zk proof for constructing the tree which wouldn't be possible.

Proof of Concept for this attack shows that even if you modify the Merkle Sum Tree construction, the circuits that include a sum constraint would not compile and generate a false proof.
Link to POC

Special thanks toPia Park for contributing in this research and building the POC for this attack.

Conclusion

The Merkle Sum Tree is a unique way to include a commitment of liabilities in a Proof of Solvency protocol. But with any new data structure and/or cryptographic protocol, it is important to understand the vulnerabilities and how to mitigate them.

A thorough security analysis of any protocol, essentially in the field of blockchain should be the top priority of any developer. That's why is always a good idea to have a reputable third party audit your code before deploying it to the mainnet. This is also a reason why building in public is a good idea as it not only promotes the idea of open source and transparent software but also allows the community to review your code and provide feedback.
